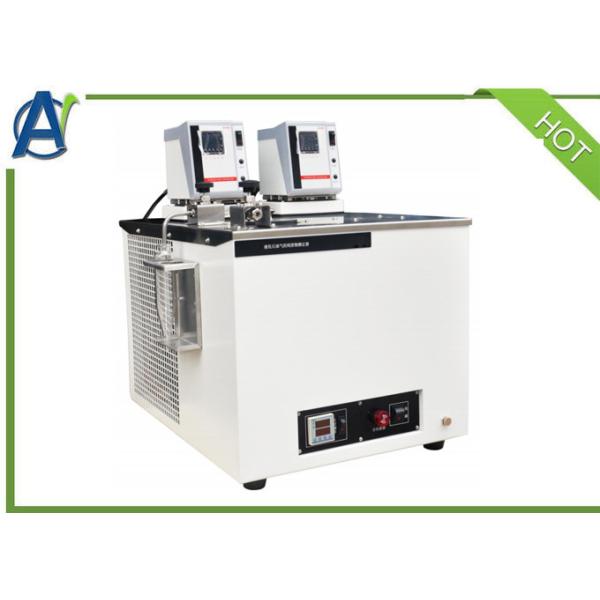

ASTM D2420 LPG Hydrogen Sulfide Test Instrument For Liquefied Petroleum Gas

Brand Name : AI

Model Number : AIC-2420

Certification : ISO

Place of Origin : China

MOQ : 1 set ASTM D2420 LPG Hydrogen Sulfide Test Instrument

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 30 days

Packaging Details : ASTM D2420 LPG Hydrogen Sulfide Test Instrument packed in hardboard

Test standard : ASTM D2420, SH/T0125

Power Supply : AC220V±10%,50HZ

Heating mode : Electrical heating tube

Temperature controll : Digital PID thermostat

Dimension : 440*310*600mm

Weight : 20KG

Total power : 1KW

Warranty : 1 Year

Contact Now

Introduction
This ASTM D2420 LPG Hydrogen Sulfide Test Instrument is used to detect the presence or absence of hydrogen sulfide in liquefied petroleum gas. The lower limit of detection of hydrogen sulfide is 4mg/m3.If methyl mercaptan is present on the lead acetate test strip, it will produce a short-term yellow stain, but it will disappear completely in less than 5 minutes.Other sulfides in liquefied petroleum gas do not interfere with this test.
I. Main features
◆ The test glass tube meets the requirements of the standard, with a glass hook inside.
◆ LPG Hydrogen Sulfide Test Instrument Provides 500ml stainless steel sampler.
◆ The gas passes through the thermal evaporation bath and the needle valve adjusts the flow.
◆ LPG Hydrogen Sulfide Test Instrument adopts imported Omron PID temperature controller, digital continuous display temperature, accuracy 0.1℃.

II.Technical specifications
Applicable Standard ASTM D2420, SH/T0125
Heating mode Electric heating tube
Temperature controlling mode Digital PID thermostat
Flow control Needle valve adjustment, flow meter displays flow
Power supply AC220V/ 50HZ
Total power 1000W
Dimension 440*310*600mm
Weight 20KG

III.Pacakge list
No. Name Quantity Unit
1 LPG Hydrogen Sulfide Test Instrument 1 Set
2 Fuse 20A 4 PC
3 Sampling cylinder 500ml 1 PC
4 Glass hook 1 PC
5 Fuse 20A 4 PC
6 Rubber stopper 10# 1 PC
7 Glass cylinder 1 Set
8 Watch glass 1 PC
9 Glass connecting pipe 1 Root
10 Breathing pipe 1 PC
11 Test strip 1 Box
12 User manual 1 Copy
